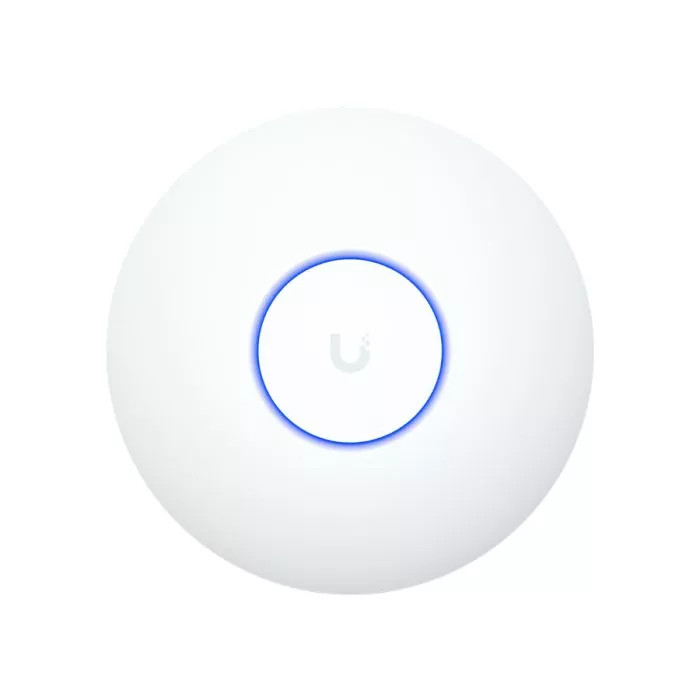

Ubiquiti UniFi AP U7-Lite – Wifi-7 U7-LITE

Product Description

Physical & Design

• Dimensions: Ø171.5 x 33 mm

• Weight: 313 g

• Material: UV-stabilized polycarbonate

• Mounting: Ceiling or wall mount

Wireless Performance

• Wi-Fi Standard: Wi-Fi 7 (802.11be)

• Frequency Bands: 2.4 GHz & 5 GHz

• MIMO Configuration:

  • 2.4 GHz: 2×2 MU-MIMO

  • 5 GHz: 2×2 MU-MIMO

• Maximum Data Rates:

  • 2.4 GHz: 688 Mbps

  • 5 GHz: 4.3 Gbps

• Antenna Gain:

  • 2.4 GHz: 4 dBi

  • 5 GHz: 5 dBi

• Max Transmit Power:

  • 2.4 GHz: 23 dBm

  • 5 GHz: 24 dBm

• Coverage: Up to 115 m²

• Max Clients: 200+

Networking & Power

• Port: 1x 2.5 GbE RJ45

• Power Method: PoE (42.5–57V DC)

• Max Power Consumption: 13W

Features

• Wireless Meshing

• Band Steering

• Fast Roaming (802.11r)

• Radio Resource Management (802.11k)

• Captive Portal with Custom Branding

• Guest Network Isolation

• Wi-Fi Speed Limiting & Schedules

• RADIUS Authentication & VLAN Assignment

Environmental

• Operating Temperature: -30 to 40°C

• Humidity: 5 to 95% non-condensing

Certifications

• CE, FCC, IC
