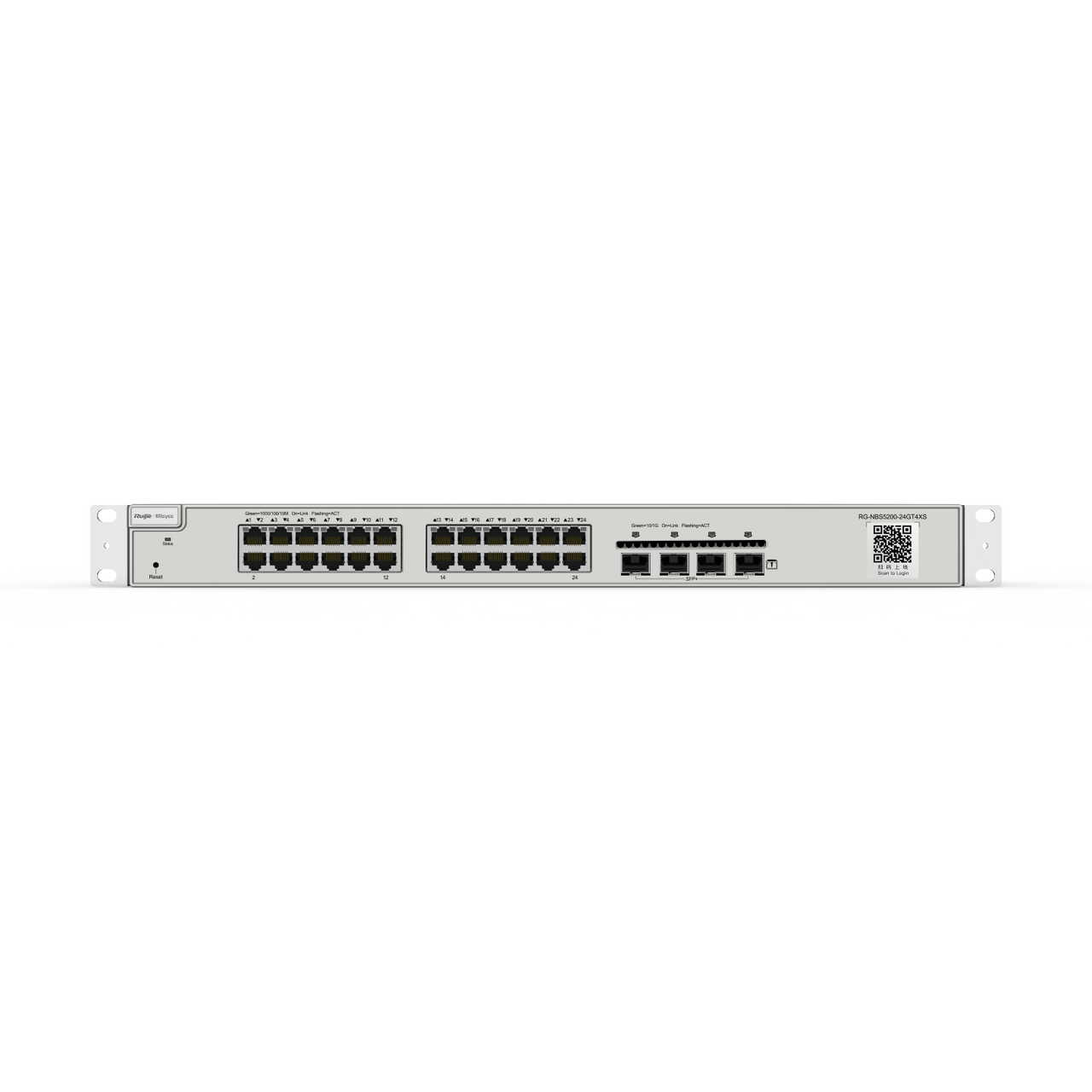

Rujie 24-port Gigabit Layer 3 Non-PoE Switch 4 SFP+ Uplink RG-NBS5200-24GT4XS

Product Description

Hardware Specifications:

• Ports:

  • 24 × 10/100/1000Base-T Ethernet ports
  • 4 × 10 Gigabit SFP+ uplink ports

• Switching Capacity: 128 Gbps

• Forwarding Rate: 96 Mpps

• MAC Address Table: 16,000 entries

• Maximum VLANs: Supports up to 4,094 VLANs

• Fan: Single, left-to-rear airflow

• Dimensions (W × D × H): 440 mm × 207.5 mm × 43.6 mm

• Weight (With Packaging): Approximately 2.9 kg

Features:

• Layer Type: Layer 3 capabilities, supporting static routing, RIP, and OSPF

• Management:

  • Cloud-managed with support for Ruijie Cloud platform
  • App-based management for easy configuration and monitoring

• Advanced Features:

  • Access Control Lists (ACLs)
  • IGMP Snooping
  • Voice VLAN
  • IP Camera Recognition
  • Security ACLs

Environmental Specifications:

• Operating Temperature: 0°C to 50°C
• Humidity: 5% to 95% non-condensing

Power:

• Input Power: AC 100 V – 240 V
• PoE Support: Not applicable for this model (Non-PoE version)

Certifications:

• CE, FCC

The RG-NBS5200-24GT4XS is a high-performance Layer 3 managed switch designed for enterprise networks
