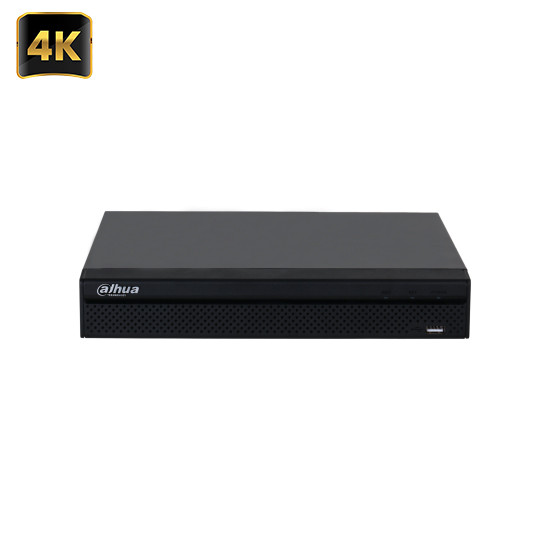

NVR 1104 HS-P-S3/H POE

Product Description

Video & Channels

• Channels: 4 IP camera inputs

• Max Resolution per Channel: Up to 8 MP (4K)

• Decoding Capability:

  • 1 × 8 MP @ 30fps

  • 4 × 1080P @ 30fps

Compression & Storage

• Video Formats: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

• HDD Support: 1 × SATA interface (up to 16 TB)

• Recording Modes: Manual, schedule, motion detection, alarm

Connectivity

• PoE Ports: 4 × RJ-45 (10/100 Mbps) IEEE 802.3af/at PoE

• PoE Budget: 50 W total

• Network Interface: 1 × RJ-45 (10/100 Mbps, uplink)

• Video Outputs: 1 × HDMI (up to 4K), 1 × VGA

• USB: 2 × USB 2.0

• Audio I/O: 1 in, 1 out (RCA)

Performance

• Incoming Bandwidth: 80 Mbps

• Outgoing Bandwidth: 60 Mbps

• Protocols: TCP/IP, IPv4/IPv6, HTTP, HTTPS, RTSP, UDP, NTP, DHCP, DNS, P2P

• Remote Access: DMSS app (iOS/Android), browser access

Power & Physical

• Power Supply: DC 48 V / 1.25 A

• Consumption: ≤8 W (without HDD, PoE not loaded)

• Dimensions: 204.6 × 204.6 × 45.6 mm

• Weight: 0.8 kg (net)

• Operating Temp: –10 °C to +55 °C

Key Features

• Built-in PoE switch for plug-and-play IP camera setup

• 4K HDMI output

• Smart codec technology for reduced storage and bandwidth

• ONVIF compatible

• Remote and mobile viewing
