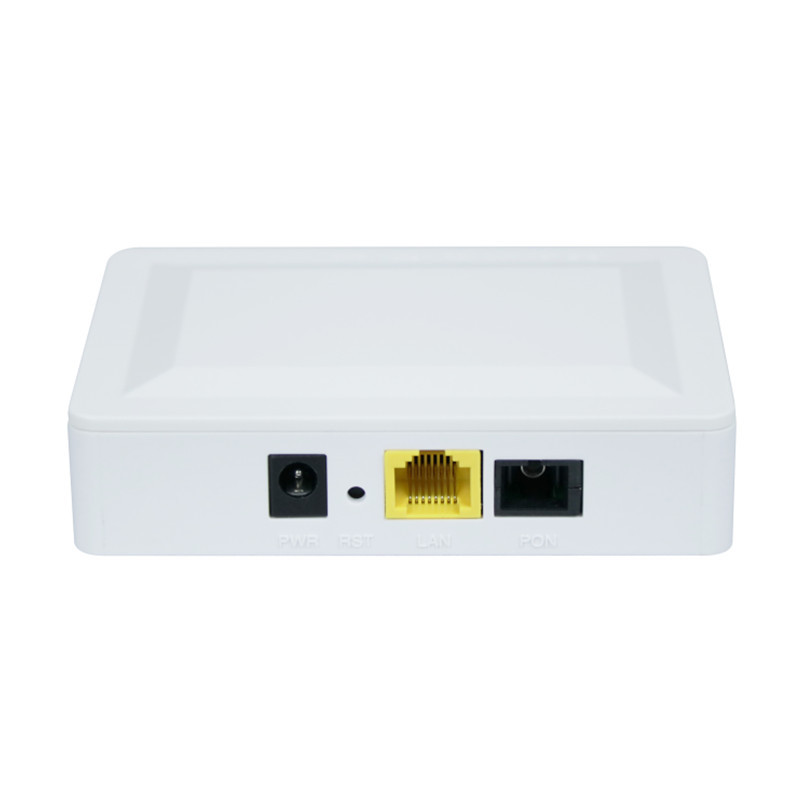

HDV Bridge Converter Single port EPON ONU
1,700 L
S’ka stok
S’ka stok
19
People watching this product now!
-
Dërgesat në Tiranë
Brenda qytetit të Tiranës korieri vjen brenda ditës.
24 Orë
L
-
Dërgesat në Gjithë Shqipërinë
Në qytetet e tjera të Shqipërisë posta arrin brenda 1 ose 2 ditëve.
1-2 Ditë
L
-
Garanci 12 muaj
-
Mundësi kthimi në 30 ditë
Mënyrat e Pagesës:
Description
Product Description
- Accept OEM & ODM customization
- Support EPON mode and switch mode automatically
- Support ONU auto-discovery/Link detection/remote upgrade of software
- Support Route PPPoE/DHCP/Static IP and Bridge mode
- Support IPv4/IPv6
- Support Firewall function and IGMP multicast feature
- Support LAN IP and DHCP Server configuration
- Compatible with HUAWEI,ZTE,Fiberhome,V-Sol,HSQ ,etc over 95% brands of OLTs on the market
- Technical support services by team of engineers.
| Technical item | Details |
| Model | HTR5034E |
|
PON Interface |
1 GEPON port(EPON PX20)
Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| Wavelength | TX: 1310nm, RX: 1490nm |
| Optical Interface | SC/UPC Connector |
| LAN Interface | 1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 |
| LED | 4 LED, For Status of PWR、LOS、PON、LINK/ACT |
| Push-Button | 2,For Function of Poweron/off,Reset |
| Operating Condition | Temperature: 0℃~+50℃
Humidity: 10%～90%（non-condensing） |
| Storing Condition | Temperature: -30℃~+60℃
Humidity: 10%~90%（non-condensing） |
| Power Supply | DC 12V/0.5A |
| Power Consumption | <3W |
| Dimension | 120mmx78mmx30mm(L×W×H) |
| Net Weight |
0.13Kg |
