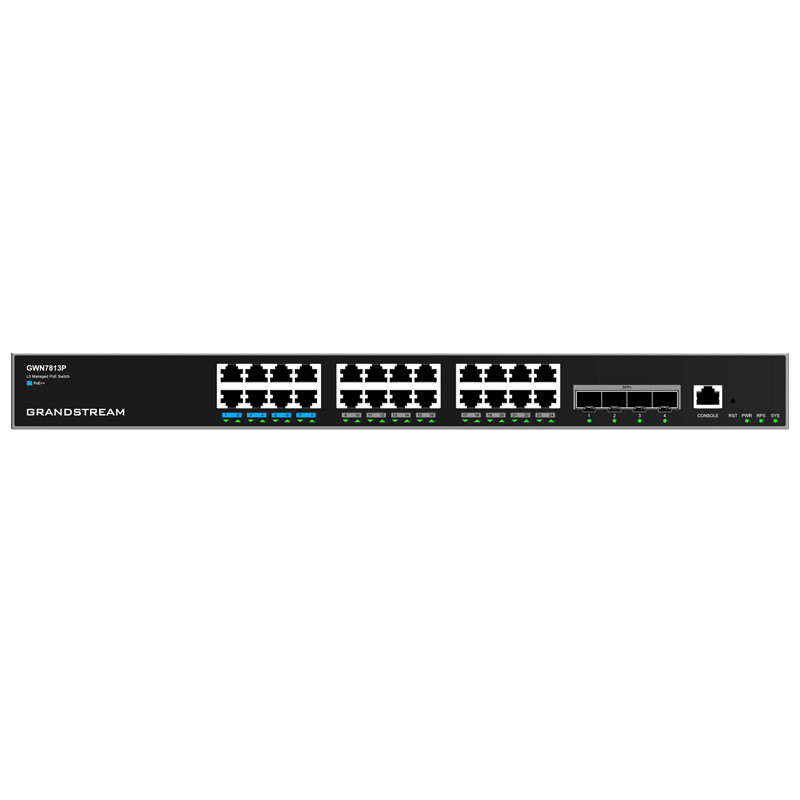

Grandstream GWN7813P 24 PoE/PoE++ 360w Port Gigabit Enterprise Layer 3 Managed Switch +4 10GB SFP port

Product Description

The GWN7810 series are Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. GWN7810 series can be managed in a number of ways, including the local Web user interface of the GWN7810 series switch and CLI, the command-line interface. The series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. The GWN7810 series are the best value enterprise-grade managed network switches for medium-to-large businesses.

Key Features & Benefits of the GWN7813P 24-Port Enterprise L3 Managed PoE Switch with 4x 10G SFP+ Uplink Ports:

• 24x Gigabit Ethernet PoE Ports
• 4x 10Gigabit SFP+ Ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port
• PoE Standards: IEEE 802.3af/at/bt
• Max Output Power per PoE Port:
  – Ports 1-8 60W (PoE++)
  – Ports 9-24 30W
• Max PoE Power Budjet: 360W
• External Redundant Power Supply (RPS): 54V(300W)
• 1x Console Port
• 1x Reset Pinhole
• Link Aggregation: 14
• Forwarding Mode: Store-and-forward
• Total non-blocking throughput: 64Gbps
• Switching Capability: 128Gbps
• Forwarding Rate: 95.232Mpps
• Packet Buffer: 12MB
• Switching:
  – 16K static, dynamic and filtering MAC addresses
  – 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
  – VLAN virtual interface
  – GVRP (pending)
  – Spanning tree, 32 instances for STP/RSTP/MSTP
• Routing:
  – Static routing
  – Dynamic routing, including RIP, RIPng, OSPF and OSPFv3
  – Policy routing (pending)
• Multicast:
  – IGMP Snooping
  – MLD Snooping
  – MVR (pending)
• QoS/ACL:
  – Port priority
  – Priority mapping
  – Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
  – Traffic shaping
  – Rate limit
  – 2K ACL for Ethernet, IPv4 and IPv6
• DHCP:
  – DHCP server
  – DHCP relay
  – DHCP Option 82, 60, 160 and 43
• Maintenance:
  – CPU and memory monitoring
  – SNMP, RMON, LLDP&LLDP-MED, backup and restore
  – Syslog, diagnostics including Ping, Traceroute, port mirroring
  – UDLD (TBD) and copper test
• Security:
  – User hierarchical management and password protection, HTTPS, SSH, Telnet
  – 802.1X authentication
  – AAA authentication including RADIUS, TACACS+
  – Storm control
  – Port isolation, port security, sticky MAC
  – Filtering MAC address
  – IP source guard, DoS attack prevention, ARP inspection
  – DHCP Snooping
  – Loop protection including BPDU protection, root protection(pending) and loopback protection(pending)
  – Kensington Security Slot (Kensington Lock) support
• Mounting:
  – Desktop
  – Wall-Mount
  – Rack-Mount (rack-mounting kits included)
• System LEDs:
  – 1x tri-color LED for device tracking and status indication
• Power Supply LEDs:
  – 2x bi-color LEDs for per power supply PWR&RPS
• PoE Powered LEDs:
  – 28x yellow-color LEDs
• Data Transferring LEDs:
  – 28x green-color LEDs
• Cooling: 3 Fans
• Operation temperature: 0°C to 45°C
• Operation humidity: 10-90% RH(Non-condensing)
• Storage temperature: -10°C to 60°C
• Storage humidity: 5% to 95% RH(Non-condensing)
• Unit dimensions (LxWxH): 440x300x44mm
• Unit weight: 4.69Kg
• Compliance: FCC, CE, RCM, IC, UKCA

Full specification click here
