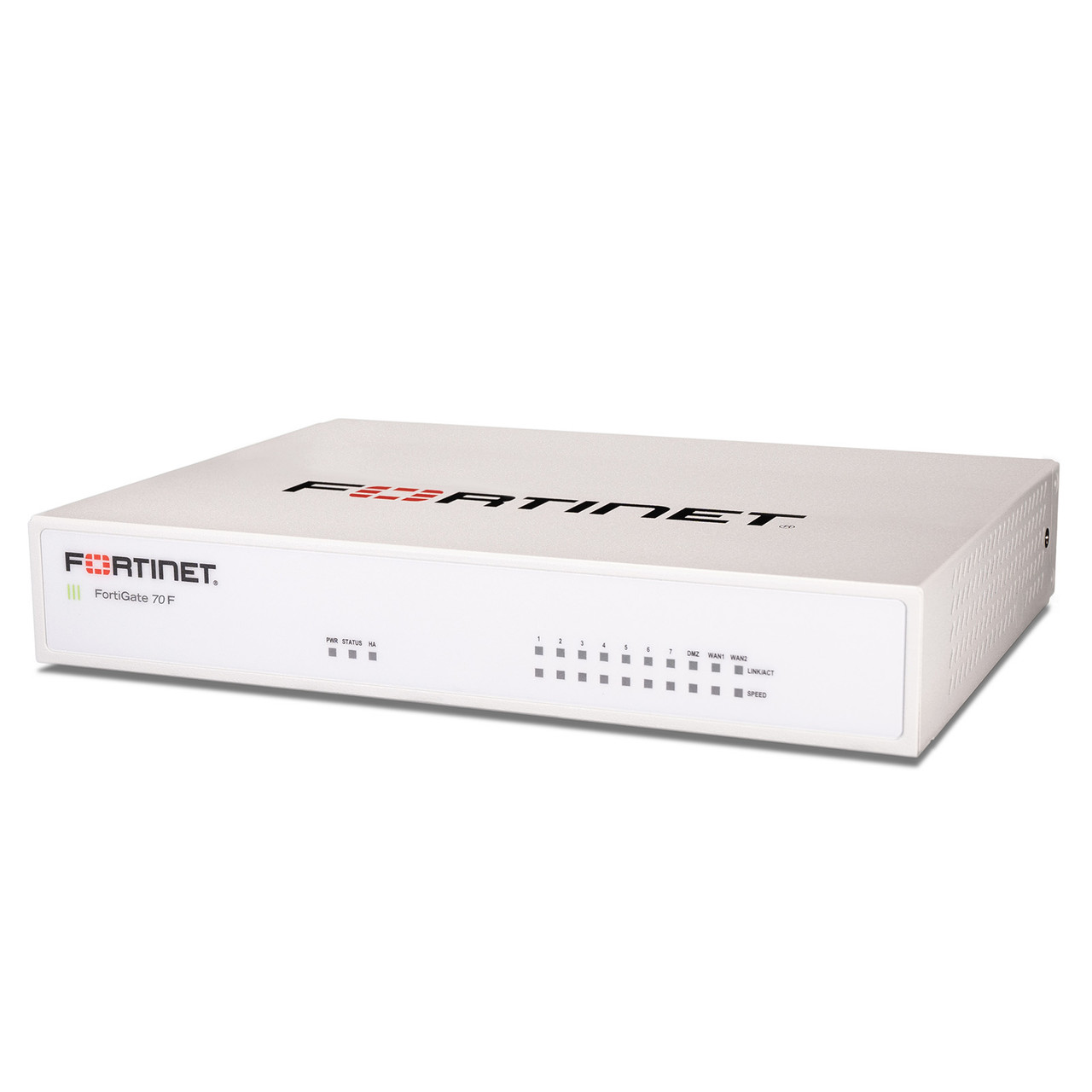

FortiGate-70F 10 x GE RJ45 ports (including 7 x Internal Ports 2 x WAN Ports 1 x DMZ) Port FG-70F

Product Description

Hardware Specifications:

• Interfaces:
  • 10 x 1 Gigabit Ethernet (GE) RJ45 ports, including:​
    • 7 x Internal ports
    • 2 x WAN ports
    • 1 x DMZ port
• Form Factor:Desktop; fanless design​
• Dimensions:216 mm (W) x 160 mm (D) x 40 mm (H)​
• Weight:Approximately 0.86 kg​

Performance:

• Firewall Throughput:
  • 10 Gbps for 1518-byte UDP packets​
  • 6 Gbps for 64-byte UDP packets​
• IPS Throughput:1.4 Gbps​
• NGFW Throughput:1 Gbps​
• Threat Protection Throughput:900 Mbps​
• Concurrent Sessions:Up to 1,000,000​
• New Sessions per Second:Up to 30,000​
• IPsec VPN Throughput:6.5 Gbps​

Features:

• Security Functions:Intrusion Prevention System (IPS), Application Control, Web Filtering, Anti-Malware Protection, SSL Inspection, and Secure SD-WAN capabilities​
• Management:Powered by FortiOS, supporting integration with Fortinet’s Security Fabric platform for unified management and automation​
• High Availability:Supports Active/Active and Active/Passive configurations​

Environmental Specifications:

• Operating Temperature:0°C to 40°C​
• Humidity:10–90% non-condensing​

Power:

• Power Consumption:Average 13W; Maximum 18.5W​
• Power Supply:External DC power adapter, 100–240V AC, 50/60 Hz
