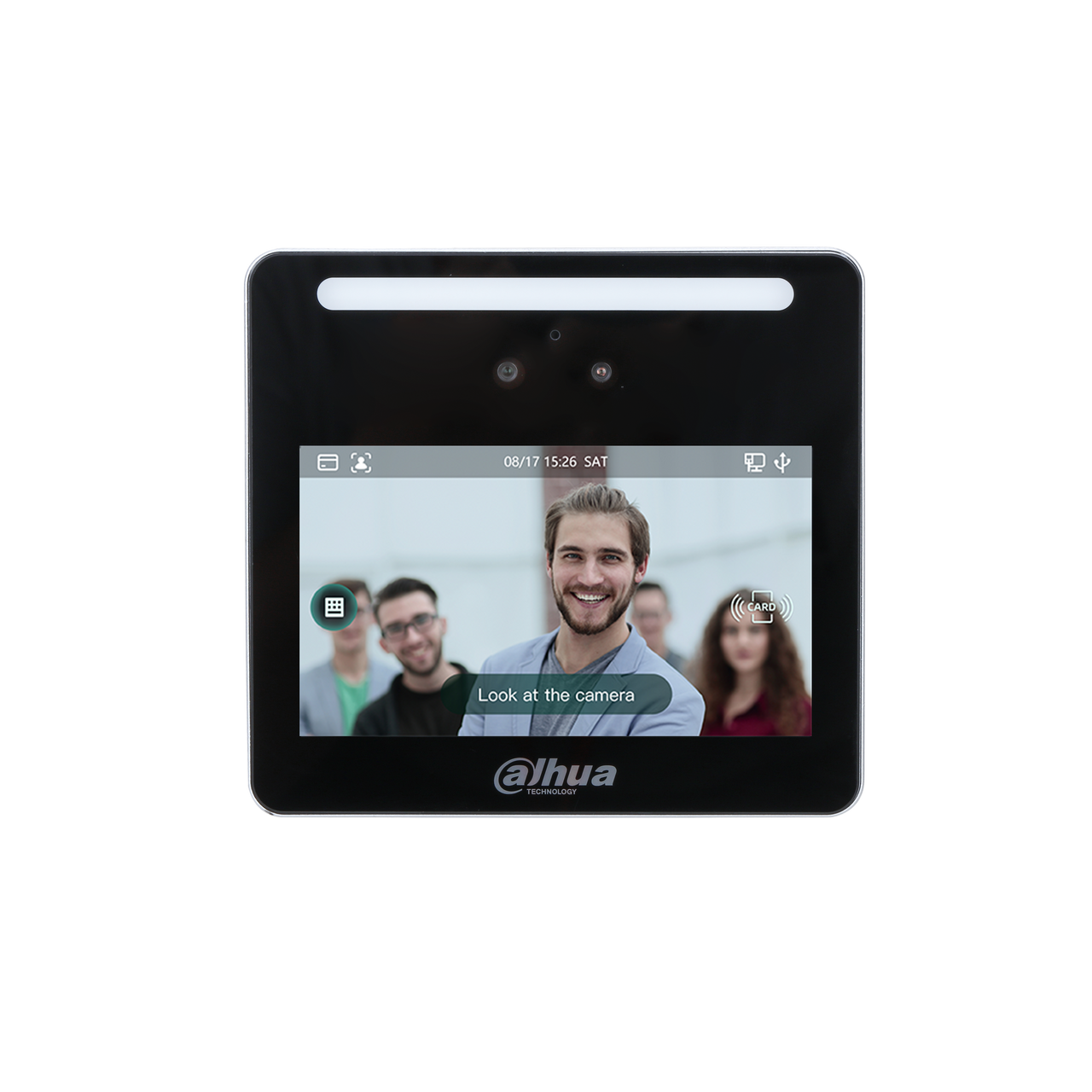

Dahua Face Recognition Time & Attendance 4.3-inch LCD touch screen DHI-ASA3213G-MW

Product Description

Display:

• Screen Size: 4.3″ TFT screen
• Screen Type: Capacitive touch screen
• Resolution: 480 × 272 pixels

Camera:

• Type: 2MP high-resolution CMOS video camera
• Lens: Wide-angle dual lens
• Backlight: White LCD backlight
• Illumination: IR illumination
• Face Recognition Distance: 0.3m – 1.5m
• Accuracy of Face Verification: 99.5%
• Face Comparison Speed: 0.3 seconds per person
• False Recognition Rate: Low
• Vitality Detection: Supported

System:

• Main Processor: Built-in processor
• Network Protocol: IPv4, RTSP, RTP, TCP, UDP, P2P
• OSDP Protocol: Supported
• Compatibility: CGI, SDK

Functions:

• Card Type: IC card
• Network Update: Supported
• Peripheral Card Reader: 1 RS-485
• Real-Time Surveillance: Yes
• Multiple Authentication: Yes
• Face Shots After Card Swiping: Yes
• Automatic Registration: Yes

Attendance:

• Exporting Attendance Records: Export to USB drive
• Attendance Types: Fixed attendance, free attendance
• Attendance Statistics: Statistics by number of people, months, violations
• Setting Up by Department: Up to 20 departments
• Setting Up by Shifts: Up to 24 shifts

Storage Capacity:

• Number of Users: 1,500
• Number of Cards: 1,500
• Number of Passwords: 1,500
• Number of Records: 150,000

Ports:

• RS-485: 1 port
• USB: 1 USB 2.0 port
• Network: 1 RJ-45 port, 10/100 Mbps, automatic configuration
• Alarm Input: 1
• Signaling: Yes
• Exit Button: 1
• Door Status Detection: 1
• Lock Management: 1

General Characteristics:

• Power Supply Adapter: Included
• Power Supply: 12V/1.5A DC
• Power Consumption: ≤ 18W
• Dimensions: 116 mm × 107 mm × 22 mm (4.57″ × 4.21″ × 0.87″) (H×W×D)
• Operating Temperature: -10°C to +55°C (+14°F to +131°F)
• Operating Humidity: 5% – 95% RH (non-condensing)
• Installation Method: Surface mounting, table mount
• Certificates: CE, FCC
