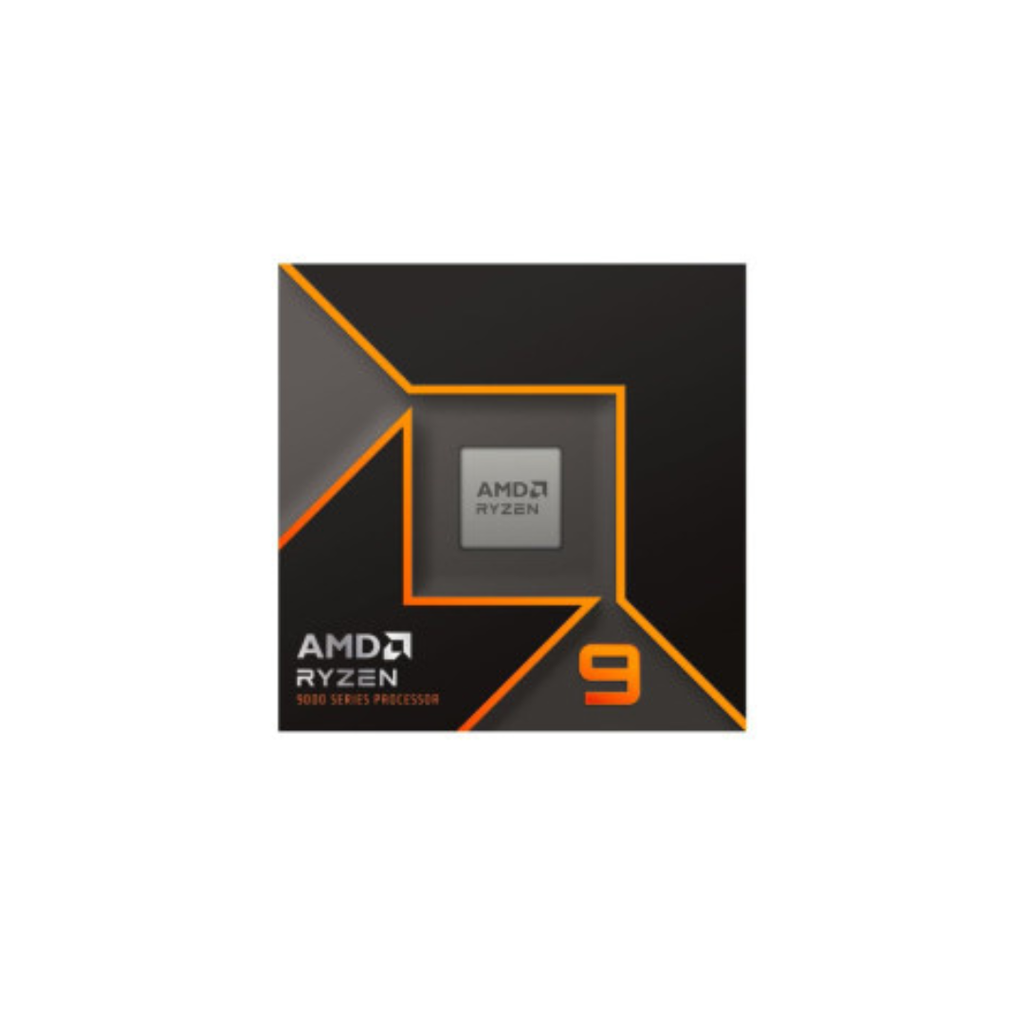

PROCESOR – CPU RYZEN 9-9900X SAM5 BX 120W 4400 100-100000662WOF AMD

AMD Ryzen 9 9900X – Specifications

Socket

• AM5

Architecture

• Zen 5 (Granite Ridge)

Cores / Threads

• 12 Cores
• 24 Threads

Base Clock

• 4.4 GHz

Max Boost Clock

• Up to 5.6 GHz

Cache

• L1 Cache: 768 KB
• L2 Cache: 12 MB
• L3 Cache: 64 MB
• Total Cache: 76.8 MB

TDP (Thermal Design Power)

• 120W

Maximum Temperature

• 95°C

Memory Support

• DDR5 up to 5600 MT/s
• Dual channel
• ECC support
• Maximum capacity: 192 GB

PCIe Support

• PCIe 5.0 (28 lanes)

Integrated Graphics

• AMD Radeon 610M
• Base Clock: 2200 MHz
• Suitable for basic display tasks

Manufacturing Process

• 4 nm (CPU cores)
• 6 nm (I/O die)

Unlocked Multiplier

• Yes (supports overclocking)

Cooler Included

• No (WOF – Without Fan)

Launch Date

• August 15, 2024

Product Code

• 100-100000662WOF

AMD Ryzen 9 9900X

……………………………….Description:

Class: Desktop

Socket: AM5

Clockspeed: 4.4 GHz

Turbo Speed: 5.6 GHz

Cores: 12 Threads: 24

Typical TDP: 120 W

Cache per CPU Package:

L1 Instruction Cache: 12 x 32 KB

L1 Data Cache: 12 x 48 KB

L2 Cache: 12 x 1024 KB

L3 Cache: 64 MB

Other names: AMD Ryzen 9 9900X 12-Core Processor

CPU First Seen on Charts: Q3 2024

Overall Rank:

144th fastest in multithreading out of 5074 CPUs

19th fastest in single threading out of 5074 CPUs

31st fastest in out of 1430 Desktop CPUs

Multithread Rating

54827

Single Thread Rating

4683
