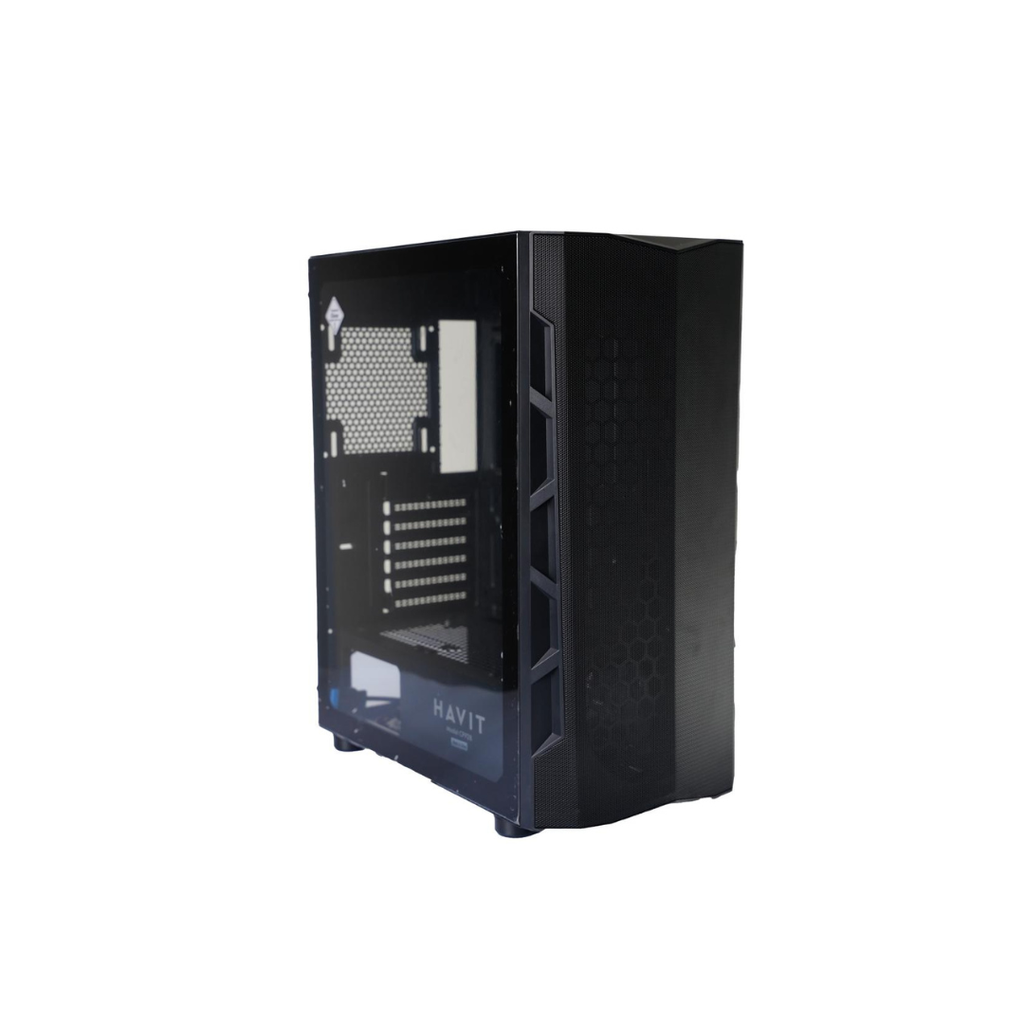

PC GAMING – PSU 700W T – MBO H510M – PROC I9 GEN 10 – RAM 32GB DDR4 – SSD M.2 1TB – RTX 3070 8GB MSI

This PC gaming build with an Intel i9-10th Gen, 32GB RAM, and RTX 3070 is a powerful configuration that offers exceptional gaming performance. Here’s a detailed breakdown of each component and its performance expectations:

Components Breakdown

1. Power Supply: 700W T
   • Details: A 700W PSU should be enough to support the Intel i9-10th Gen and RTX 3070 configuration. The RTX 3070 has a TDP of around 220W, and the Intel i9-10th Gen (like the i9-10900K) typically uses 125W under full load.
   • Recommendation: A 700W PSU is adequate, but make sure it’s from a reliable brand and is at least 80+ Bronze certified for efficiency. A Gold-certified PSU would be a more ideal choice for better efficiency and future-proofing.
2. Motherboard: H510M
   • Details: The H510M motherboard is an entry-level micro-ATX board for Intel’s 10th Gen CPUs. It provides basic features but lacks some advanced functionalities like overclocking or PCIe 4.0 support.
     • PCIe 3.0 support is fine for the RTX 3070 since the card runs perfectly well on PCIe 3.0.
     • Lacks overclocking support, meaning you won’t be able to boost the performance of the i9-10th Gen unless you switch to a Z490 or B560 motherboard.
   • Recommendation: For more future-proofing and expanded feature sets (like faster RAM speeds and overclocking), consider upgrading to a B560 or Z490 motherboard.
3. Processor: Intel Core i9-10th Gen (e.g., i9-10900K)
   • Details: The Intel i9-10th Gen is a 10-core, 20-thread processor, making it highly capable for gaming, multitasking, and content creation.
     • Base Clock: 3.7 GHz, Boost Clock: Up to 5.3 GHz (on the i9-10900K).
     • Excellent for demanding workloads like video editing, 3D rendering, and gaming at high settings.
   • Cooling: Make sure you have a good cooling solution for the i9, as it can run hot under load. If you’re using a stock cooler, consider upgrading to a more capable cooler like air coolers (e.g., Noctua NH-D15) or an AIO liquid cooler.
4. RAM: 32GB DDR4
   • Details: 32GB of DDR4 RAM is more than enough for gaming, multitasking, and even content creation.
     • Ideal for video editing, streaming, and handling multiple applications or games at once.
     • You should aim for at least 2933 MHz RAM speed, though 3200 MHz or 3600 MHz would be ideal for gaming and productivity tasks, especially with the i9-10th Gen.
   • Recommendation: For best performance, opt for dual-channel memory (2x16GB) with a speed of 3200 MHz or 3600 MHz to maximize bandwidth.
5. Storage: 1TB M.2 SSD
   • Details: The 1TB M.2 SSD is a great choice for fast storage. It allows for quick boot times and fast game/application loading.
     • If it’s a PCIe 3.0 SSD, such as the Samsung 970 EVO or Crucial P3, it will be more than sufficient for this build.
     • PCIe 4.0 SSDs won’t be fully utilized on the H510M motherboard, but they will still provide fast speeds (although you won’t reach the maximum potential speeds).
   • Recommendation: For future-proofing, if you plan to upgrade your motherboard to one that supports PCIe 4.0, consider a Gen 4 SSD like the Samsung 980 Pro or Western Digital SN850.
6. Graphics Card: NVIDIA RTX 3070 8GB MSI
   • Details: The RTX 3070 is an incredible choice for 1440p and 4K gaming, providing excellent performance at high/ultra settings.
     • 1080p: Capable of running modern games at high/ultra settings with 120+ FPS.
     • 1440p: Delivers 60–100 FPS at high/ultra settings in demanding games.
     • 4K: Capable of delivering 60 FPS in most titles with medium-high settings and DLSS enabled.
     • Features like Ray Tracing and DLSS will significantly enhance visual quality and performance in supported games.
   • Recommendation: With this GPU, you can easily handle Ray Tracing in most titles, and it supports DLSS, which helps improve performance while maintaining high visual quality.

Performance Expectations

• Gaming:
  • 1080p: Will easily handle high refresh rate gaming (120Hz+), even with Ray Tracing on some titles.
  • 1440p: The RTX 3070 will run most AAA games at high/ultra settings with frame rates well over 60 FPS.
  • 4K: You can achieve 60 FPS with medium to high settings. For more demanding games, you may need to dial down settings, but DLSS can help achieve a solid 60 FPS with Ray Tracing enabled.
• Productivity:
  • The i9-10th Gen paired with 32GB RAM makes this build great for streaming, video editing, 3D rendering, and multitasking. It can handle content creation workloads with ease.
• Storage:
  • The 1TB SSD offers fast read and write speeds, providing quick load times for games, OS, and applications.
