PC GAMING – APEX GA-01B-TG-OP – 850W – Z790 RIPTIDE – RAM 32GB DDR5 – NVME 1TB 990 EVO – PROC I7 14700F – LIQUID 240 MM – RTX 4070 SUPER 12GB

This is a high-performance gaming PC build that offers an excellent balance of power, efficiency, and cooling. Here’s a breakdown of the components and what they bring to the table:

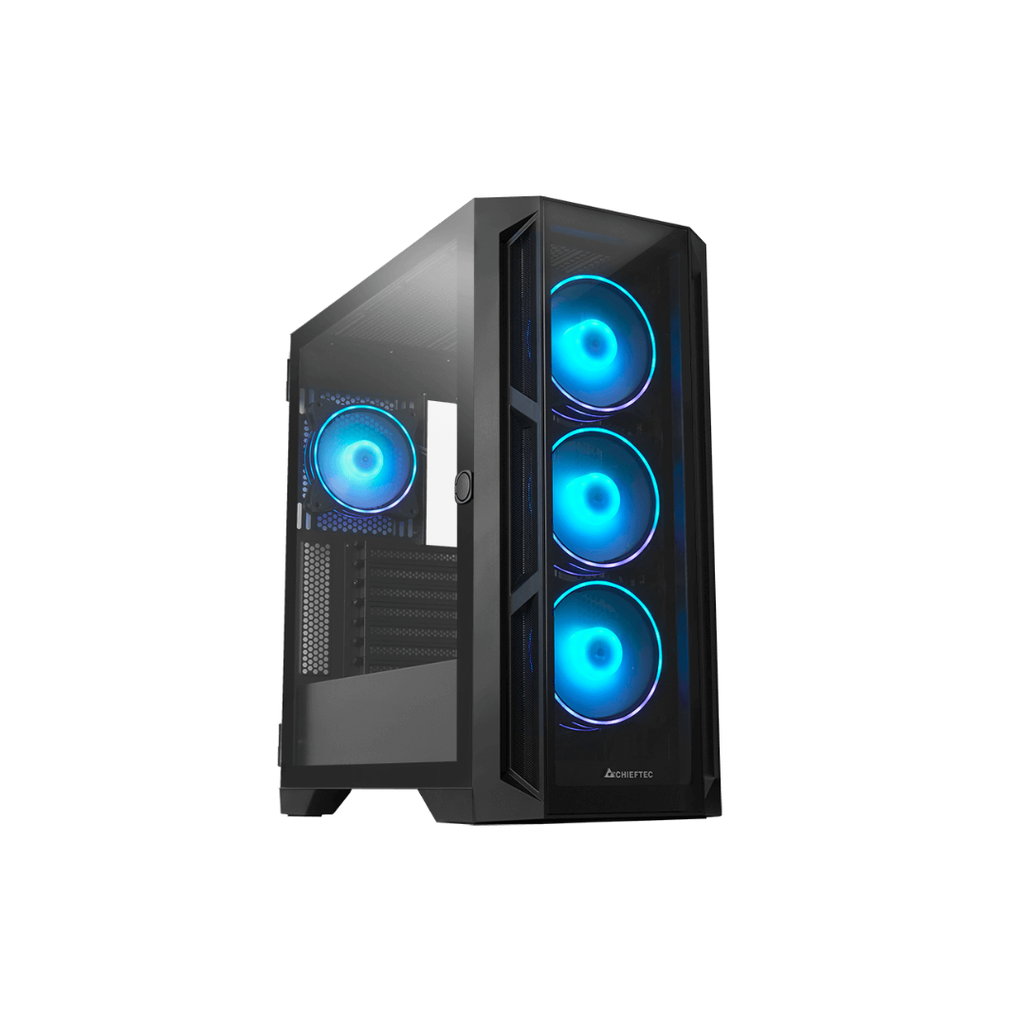

1. Case: APEX GA-01B-TG-OP

• Type: Mid-Tower Case.
• Features: Tempered glass panel (showcases internal components), optimized airflow design, and adequate space for high-performance GPUs and liquid cooling systems.
• Remarks: Ensure it has sufficient space and clearance for your Arctic Liquid 240 mm radiator and cable management.

2. PSU: Thermaltake 850W 80+ Gold

• Power Output: 850W (sufficient headroom for this setup).
• Efficiency: 80+ Gold certified, ensuring high energy efficiency and stable power delivery.
• Remarks: A good choice for powering a high-end GPU like the RTX 4070 Super and maintaining overall stability.

3. Motherboard: ASRock Z790 Riptide

• Chipset: Z790 (supports Intel 13th and 14th gen processors).
• Features: PCIe 5.0 support, high-speed DDR5 RAM compatibility, and advanced I/O features (e.g., USB-C, Thunderbolt-ready, and multiple M.2 slots).
• Remarks: Excellent pairing with the Intel Core i7-14700F, providing robust overclocking and upgrade potential.

4. CPU: Intel Core i7-14700F

• Cores/Threads: 20 cores (8P+12E) / 28 threads.
• Base/Boost Clock: Excellent performance for both gaming and productivity tasks.
• Remarks: The “F” variant lacks integrated graphics, but this is irrelevant since you’re using an RTX 4070 Super.

5. Cooling: Arctic Liquid Freezer II 240 mm

• Type: 240 mm All-in-One (AIO) liquid cooler.
• Performance: Top-tier cooling efficiency with low noise levels.
• Remarks: Ensure your case supports 240 mm radiators and proper airflow for optimal cooling.

6. GPU: NVIDIA RTX 4070 Super 12GB

• VRAM: 12GB GDDR6X, ideal for 1440p and even 4K gaming.
• Performance: Excellent ray tracing and DLSS 3 support.
• Remarks: A solid choice for future-proofing and handling the latest AAA games at high settings.

7. RAM: 32GB DDR5 6400 MHz

• Type: High-speed DDR5 RAM.
• Capacity: 32GB is more than sufficient for gaming, streaming, and multitasking.
• Remarks: 6400 MHz speeds leverage the full potential of the Z790 chipset and 14th Gen Intel CPU.

8. Storage: Samsung 990 EVO NVMe 1TB

• Type: PCIe 4.0 NVMe SSD.
• Performance: Industry-leading read/write speeds, ideal for fast boot times and reduced load times in games.
• Remarks: If you need additional storage, consider pairing this with a secondary HDD or SSD.

Summary:

This build is optimized for 1440p and 4K gaming, streaming, and productivity workloads. It offers excellent future-proofing with DDR5 RAM and PCIe 5.0 support. Ensure your case cooling and airflow are set up correctly to keep temperatures in check under load.
