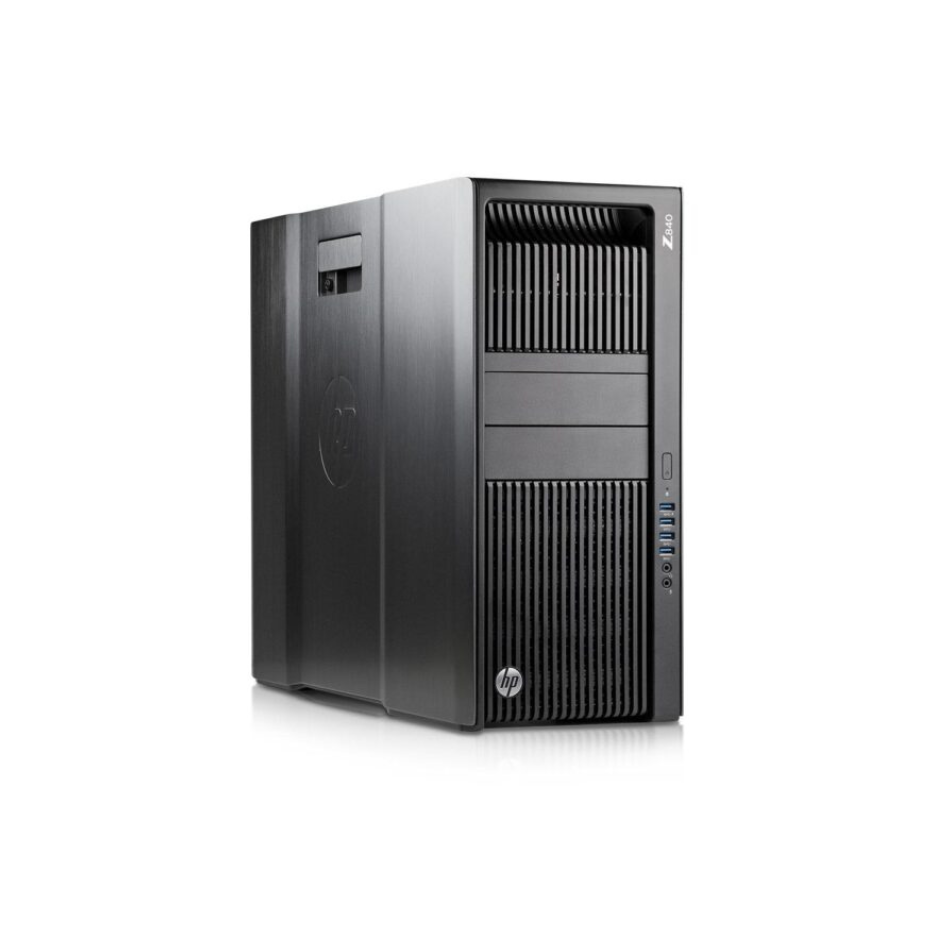

HP Z840 – RAM 128GB DDR4 – 2X XEON E5-2690 v3 – SSD 512GB – HDD 2TB – NVIDIA QUADRO M4000 8GB DED

The HP Z840 is a high-end workstation tailored for professionals working with complex simulations, rendering, and large datasets. With 128GB DDR4 RAM, dual Xeon E5-2690 v3 processors, SSD and HDD storage, and an NVIDIA Quadro M4000 GPU, this system provides the performance and reliability needed for advanced workflows.

HP Z840 – Key Specifications

Processors:

• Model: 2x Intel Xeon E5-2690 v3
• Cores/Threads (each): 12 cores / 24 threads
• Total Cores/Threads: 24 cores / 48 threads
• Base Clock: 2.6 GHz (up to 3.5 GHz Turbo Boost)
• Cache (each): 30MB Smart Cache
• Purpose: Ideal for parallel workloads such as 3D rendering, scientific computing, and virtualization.

Memory (RAM):

• Installed: 128GB DDR4 ECC (Error-Correcting Code memory)
• Memory Speed: 2133 MHz
• Expandable: Up to 2TB across 16 DIMM slots
• ECC Support: Prevents data corruption, ensuring reliability during heavy computational loads.

Storage:

• Primary Storage: 512GB SSD (for fast boot and quick access to software and OS)
• Secondary Storage: 2TB HDD (for bulk storage of projects, data, and backups)
• RAID Support: Available for redundancy or improved performance across multiple drives.

Graphics:

• Model: NVIDIA Quadro M4000
• VRAM: 8GB GDDR5 (dedicated)
• Performance:
  • Optimized for CAD, 3D modeling, and simulation software (e.g., AutoCAD, SolidWorks, Maya).
  • Capable of driving up to 4x 4K displays.
  • Certified drivers for professional applications to ensure stability and performance.

Connectivity:

• Ports:
  • Multiple USB 3.0 and USB 2.0 ports
  • Dual Gigabit Ethernet
  • Audio in/out and microphone jack
  • PCIe expansion slots for additional GPUs, SSDs, or network cards.
• PCIe Slots: 7x PCIe slots, supporting a variety of configurations for upgrades.

Operating System:

• OS Compatibility: Windows 10/11 Pro, Linux (Ubuntu, RedHat, or other distributions).

Power Supply:

• Dual Power Supplies: Up to 1450W for redundancy and uninterrupted operation.

Chassis & Expandability:

• Form Factor: Full Tower
• Dimensions: 17.5 x 8.0 x 21.9 inches (H x W x D)
• Weight: Approx. 22.5 kg (49.6 lbs)
• Expansion: Supports additional GPUs, storage drives, or PCIe cards for future scalability.

Performance Summary

• Dual Processors: The 24 cores / 48 threads from the Xeon E5-2690 v3 CPUs make the Z840 ideal for parallel computing tasks, heavy simulations, and 3D rendering.
• Memory Capacity: With 128GB of ECC DDR4 RAM, this system can handle memory-intensive workflows, ensuring smooth performance even with large datasets and virtual machines.
• Storage Versatility: The combination of 512GB SSD and 2TB HDD provides both speed and capacity, meeting the needs of fast access and long-term storage.
• Professional Graphics: The Quadro M4000 offers excellent performance for CAD and 3D modeling applications, along with multi-display support for productivity.

Best Use Cases

• 3D Rendering and VFX Production: Perfect for rendering engines like V-Ray, Arnold, or Blender.
• Engineering and CAD: Ideal for architects, engineers, and designers working with AutoCAD, SolidWorks, or Revit.
• Virtualization: Can manage multiple virtual machines for testing and development purposes.
• Scientific Computing: Suitable for simulations, data analysis, and AI model training.

The HP Z840 with dual Xeon E5-2690 v3, 128GB RAM, SSD + HDD storage, and Quadro M4000 GPU is built for professionals demanding high performance, scalability, and reliability in their workflows.
