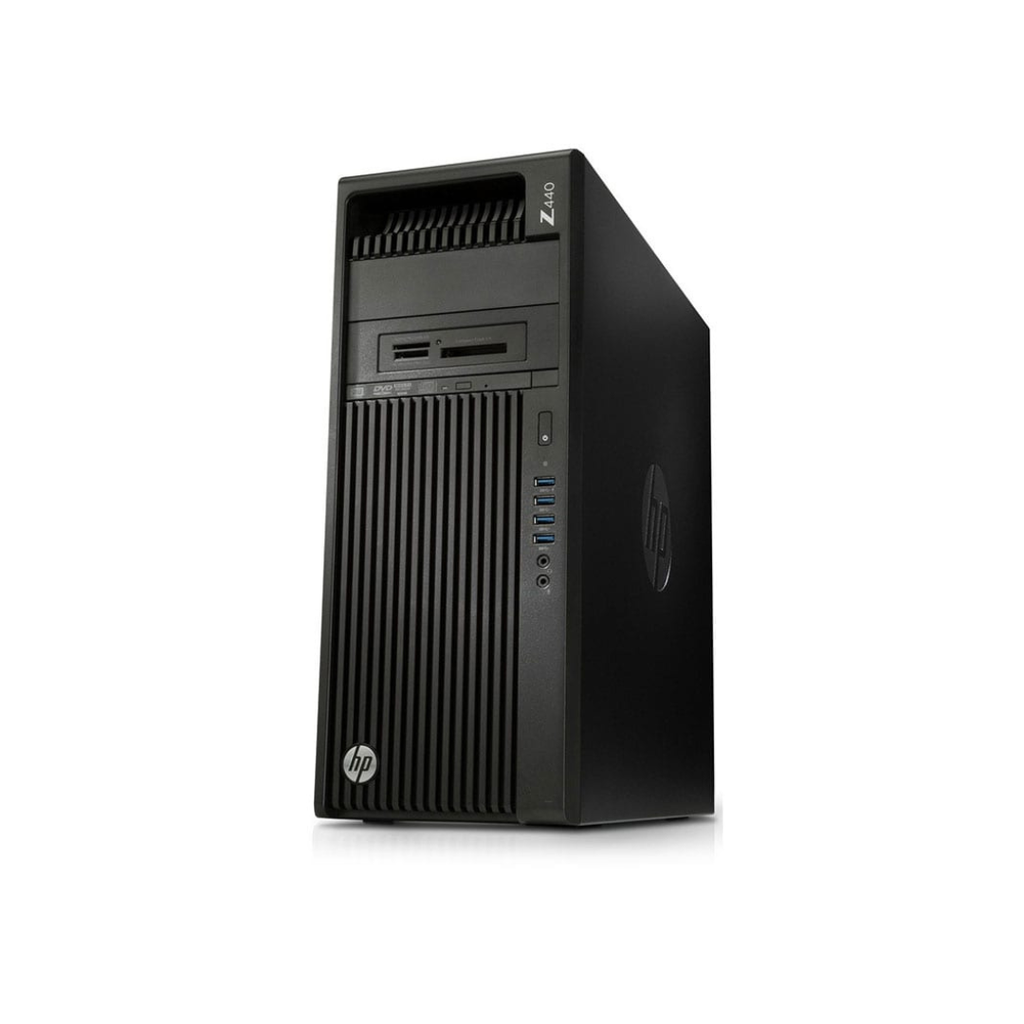

HP Z440 – RAM 16GB DDR4 – PROC E5-1620 v3 – SSD 256GB – GRAF QUADRO NVS 510 2GB DED

The HP Z440 Workstation is a robust and versatile system designed for professionals requiring reliable performance for tasks such as 3D modeling, video editing, and complex simulations. Below are the key specifications for the configuration you’ve mentioned:

Processor:

• Model: Intel Xeon E5-1620 v3
• Cores/Threads: 4 Cores / 8 Threads
• Base Frequency: 3.5 GHz
• Cache: 10 MB
• TDP: 140W

Memory:

• Installed RAM: 16 GB DDR4
• Configuration: Typically 2 x 8 GB modules
• Speed: 2133 MHz
• Maximum Supported: Up to 128 GB
• Slots: 8 DIMM slots

Storage:

• Type: Solid State Drive (SSD)
• Capacity: 256 GB

Graphics:

• Model: NVIDIA Quadro NVS 510
• Video Memory: 2 GB dedicated GDDR3
• Outputs: 4 x Mini DisplayPort
• Supported Displays: Up to 4 simultaneous displays

Expansion Slots:

• PCIe x16 (Gen 3): 2 slots
• PCIe x8 (Gen 3): 1 slot (open-ended)
• PCIe x4 (Gen 2): 1 slot (open-ended)
• PCIe x1 (Gen 2): 1 slot (open-ended)
• PCI (32-bit/33 MHz): 1 slot

Drive Bays:

• Internal 3.5″ or 2.5″ HDD/SSD: 2 bays
• External 5.25″ ODD: 2 bays

Ports:

• Front:
  • 4 x USB 3.0
  • 1 x Headphone
  • 1 x Microphone
• Rear:
  • 4 x USB 3.0
  • 2 x USB 2.0
  • 2 x PS/2 (Keyboard and Mouse)
  • 1 x RJ-45 (Gigabit Ethernet)
  • 1 x Audio Line-In
  • 1 x Audio Line-Out

Networking:

• Ethernet: Integrated Intel I218LM PCIe GbE
• Optional: Wi-Fi and Bluetooth modules

Power Supply:

• Wattage: 700W
• Efficiency: 90% efficient, wide-ranging, active Power Factor Correction (PFC)

Dimensions and Weight:

• Form Factor: Tower
• Dimensions (H x W x D): 17.5 x 6.75 x 17.0 inches (44.45 x 17.15 x 43.18 cm)
• Weight: Approximately 22 lbs (10 kg), depending on configuration
