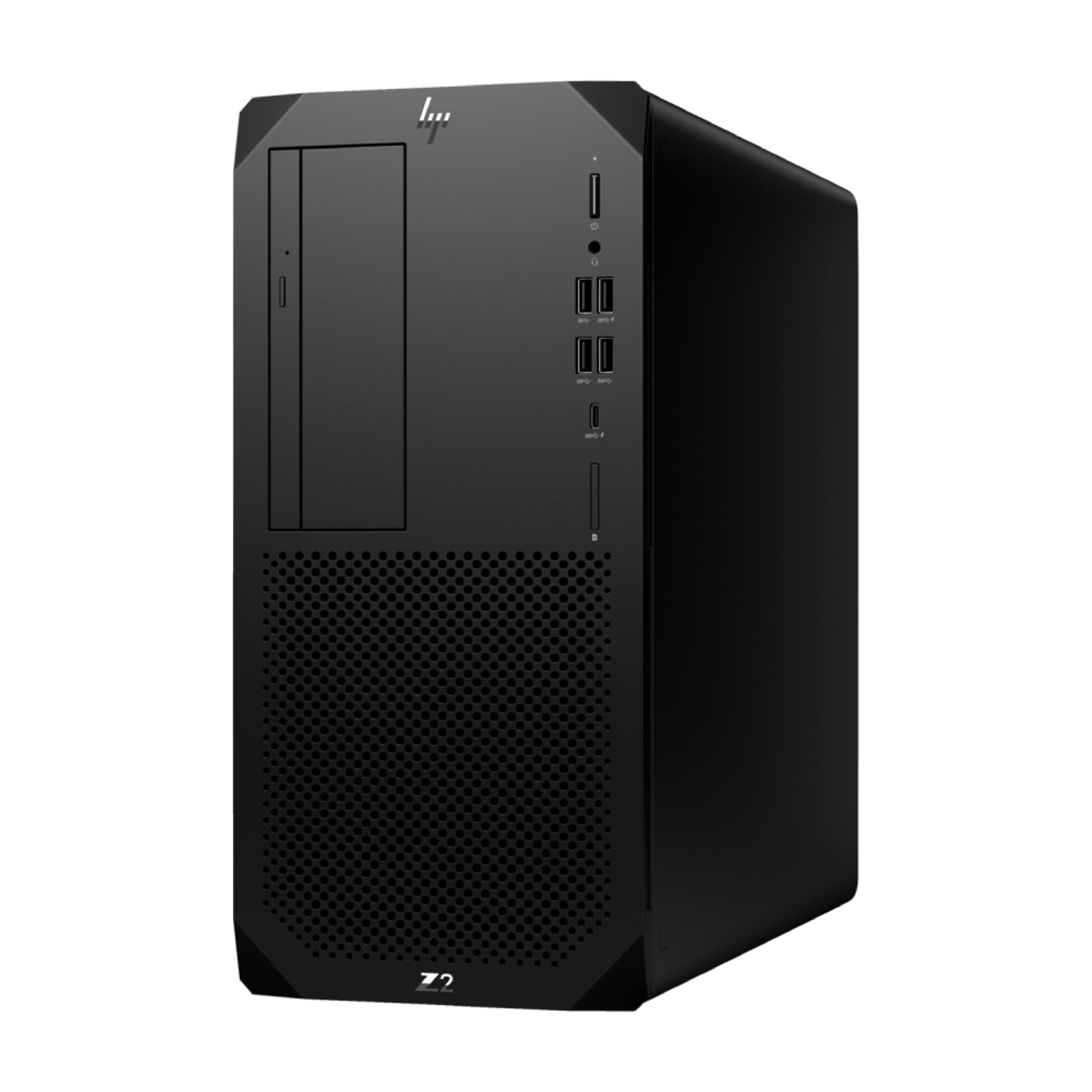

HP Z2 TWR Base Unit G9 i7-14700 32GB (1x32GB) DDR5 4800 UDIMM NECC 1TB PCIe-4×4 2280 M.2 DVDRW USB mouse USB kbd 700W

Product Description

Form Factor & Dimensions:

• Tower 4U
• Dimensions: 6.7 inches (W) × 15.2 inches (D) × 14 inches (H)
• Weight: ~6.5 Kg

Processor:

• Installed: Intel® Core™ i7-14700
  • Cores/Threads: 20C (8P + 12E) / 28T
  • Base Clock: 2.1 GHz
  • Max Turbo Frequency: Up to 5.4 GHz
  • TDP: 65W

Memory:

• Installed: 32GB (1x32GB) DDR5-4800 UDIMM Non-ECC
• Maximum Capacity: Up to 128GB DDR5
• Memory Slots: 4 DIMM slots

Storage:

• Installed: 1TB PCIe 4.0 x4 NVMe M.2 SSD (2280)
• Expandable Storage Options:
  • Supports multiple M.2 and SATA drives
  • Additional HDD/SSD options available

Graphics:

• Integrated Intel UHD Graphics 770

Optical Drive:

• Installed: DVDRW Drive

Networking:

• Integrated: 1GbE Ethernet (RJ-45)

Expansion Slots:

• 1x PCIe 5.0 x16
• 1x PCIe 3.0 x16 (x4 mode)
• 1x PCIe 3.0 x4
• 1x PCIe 3.0 x4 (x1 mode)
• 3x M.2 slots (PCIe 4.0 x4) for storage
• 1x M.2 slot (2230, PCIe 3.0 x1) for wireless

Ports & Connectivity:

• Front Panel:
  • 4x USB 3.2 Gen 1 Type-A
  • 1x 3.5mm headphone/microphone combo
• Rear Panel:
  • 1x RJ-45 (Ethernet)
  • 2x DisplayPort 1.4
  • 2x USB 3.2 Gen 2 Type-A (10Gbps)
  • 1x USB 3.2 Gen 1 Type-A (5Gbps)
  • 3x USB 2.0 Type-A
  • 1x Audio In/Out

Power Supply:

• Installed: 700W Internal Power Supply

Accessories Included:

• USB Keyboard & USB Mouse
