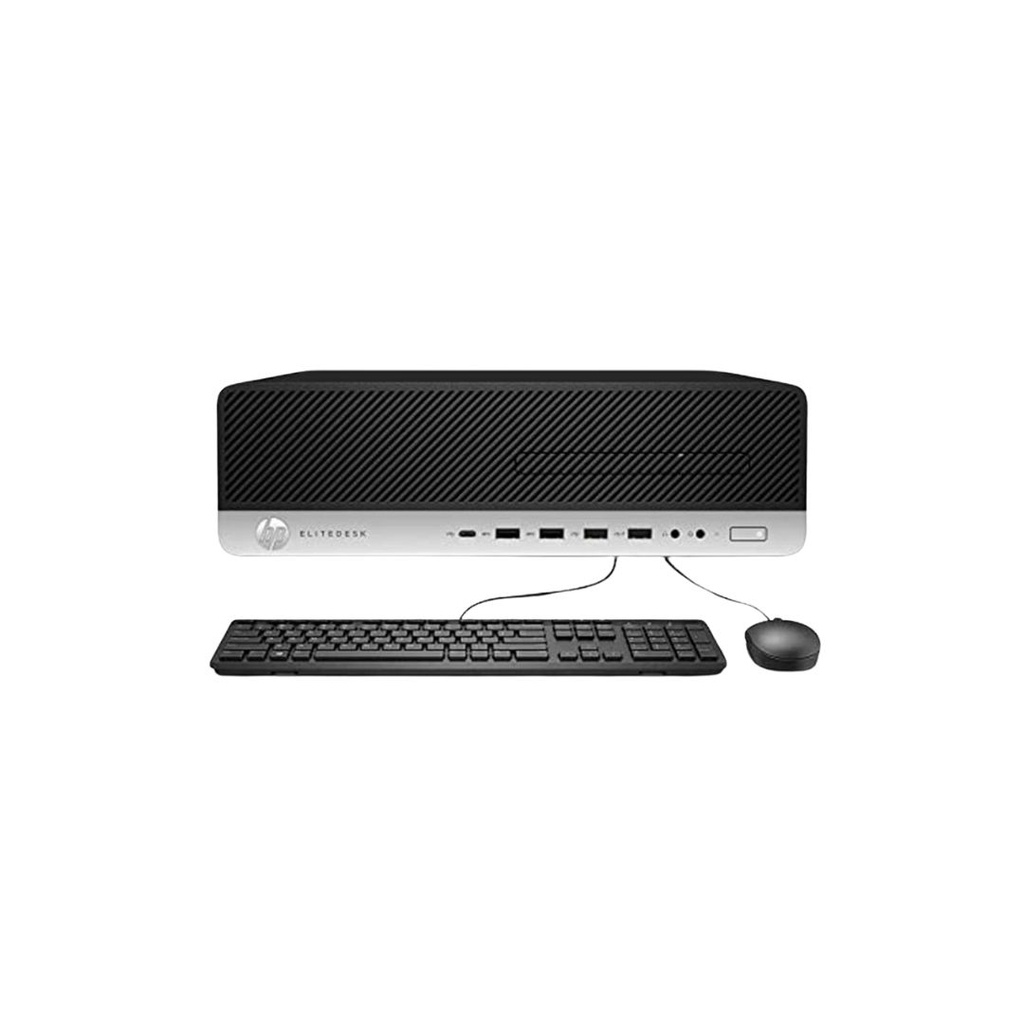

HP ELITEDESK 800 G3 SFF RAM 16GB – PROC I5 GEN7 – SSD 256GB – GRAF 8GB TOT

The HP EliteDesk 800 G3 Small Form Factor (SFF) is a business-class desktop designed for reliability and performance in a compact footprint. Below are its key specifications:

Processor:

• Model: Intel Core i5-7500
• Cores/Threads: 4 Cores / 4 Threads
• Base Frequency: 3.4 GHz
• Cache: 6 MB
• TDP: 65W

Memory:

• Installed RAM: 16 GB DDR4 SDRAM
• Configuration: Typically 2 x 8 GB modules
• Speed: 2400 MHz
• Maximum Supported: 64 GB
• Slots: 4 DIMM slots

Storage:

• Type: Solid State Drive (SSD)
• Capacity: 256 GB

Graphics:

• Integrated GPU: Intel HD Graphics 630
• Video Memory: Shared system memory

Expansion Slots:

• PCIe x16: 1 slot
• PCIe x4: 1 slot
• M.2: 2 slots (for WLAN and storage)

Drive Bays:

• Internal 3.5″ HDD: 1 bay
• Internal 2.5″ HDD: 1 bay
• External 5.25″ ODD: 1 bay

Ports:

• Front:
  • 2 x USB 3.1 Gen 1
  • 2 x USB 2.0 (one with fast charging)
  • 1 x USB Type-C
  • 1 x Headphone/Microphone combo
• Rear:
  • 4 x USB 3.1 Gen 1
  • 2 x USB 2.0
  • 2 x DisplayPort 1.2
  • 1 x VGA (optional)
  • 1 x Serial
  • 1 x RJ-45 (Ethernet)
  • 3 x Audio (Line-in, Line-out, Microphone)

Networking:

• Ethernet: Integrated Intel I219LM Gigabit Network Connection
• Wi-Fi: Optional; varies by configuration
• Bluetooth: Optional; varies by configuration

Power Supply:

• Wattage: 180W
• Efficiency: Up to 92% efficient, active PFC

Dimensions and Weight:

• Height: 3.74 inches (95 mm)
• Width: 10.63 inches (270 mm)
• Depth: 11.65 inches (296 mm)
• Weight: Approximately 9.92 lbs (4.5 kg)

Please note that while the system comes with integrated Intel HD Graphics 630, configurations with discrete graphics cards are available. The specific graphics card model and its dedicated memory (e.g., 8 GB) would depend on the chosen configuration. For precise details on the graphics hardware,

The HP EliteDesk 800 G3 SFF is engineered to deliver robust performance and expandability, making it suitable for various business applications.
