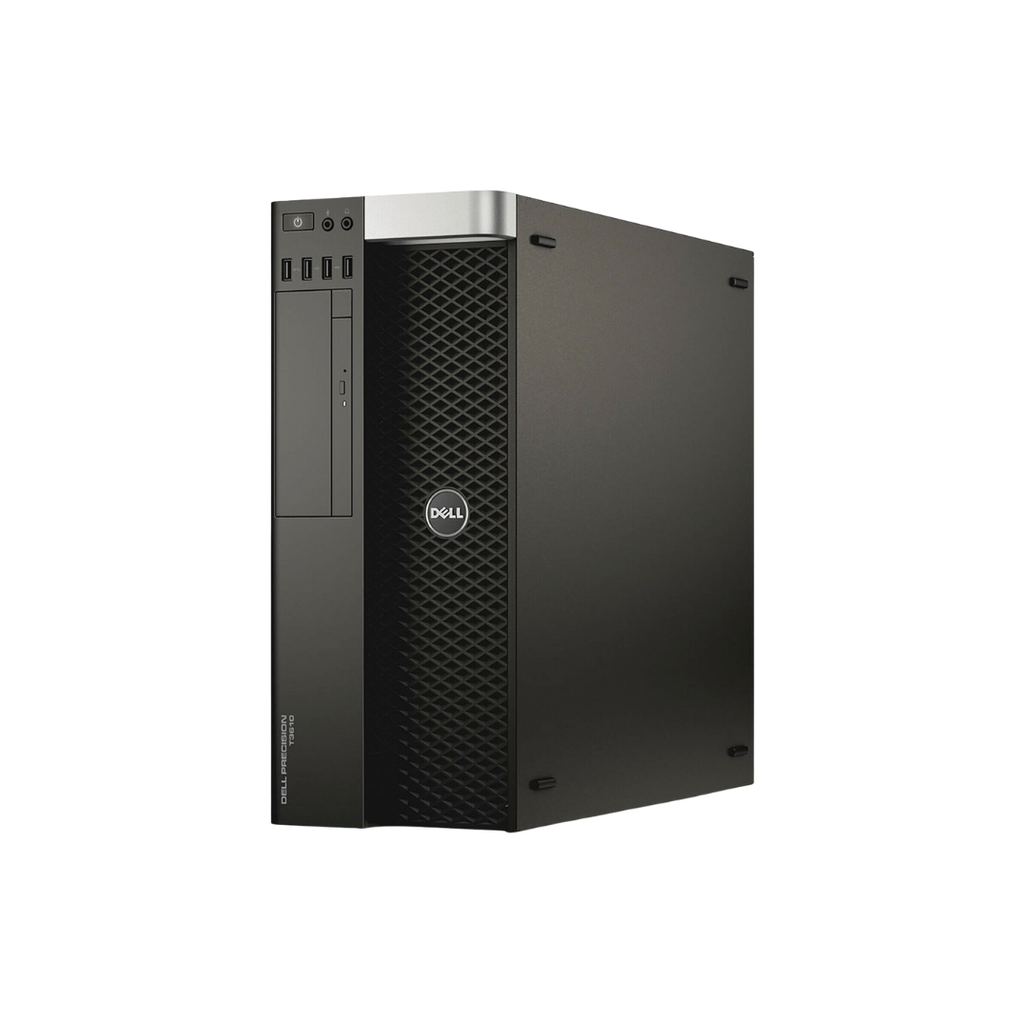

DELL PRECISION T3610 – RAM 32GB – PROC XEON E5-1650 v2 – SSD 256GB – GRAF QUADRO K5000

Model: Dell Precision T3610 Tower

Specifications:

• Processor: Intel Xeon E5-1650 v2 (6 cores, 12 threads, base 3.5 GHz, turbo up to 3.9 GHz, 12 MB cache)

• Chipset: Intel C602

• Memory (RAM): 32 GB DDR3 ECC Registered (supports up to 128 GB, 8 DIMM slots, 1866 MHz)

• Storage: 256 GB SSD (SATA 6 Gb/s interface, optional secondary drives supported)

• Graphics: NVIDIA Quadro K5000 – 4 GB GDDR5 dedicated (1536 CUDA cores, 256-bit memory bus, 173 GB/s bandwidth)

• Operating System: Windows 10 Pro / Windows 11 Pro (depending on installation)

• Optical Drive: DVD-RW

Connectivity:

• 1 × Gigabit Ethernet (RJ-45)

• Optional Wi-Fi (via PCIe or USB adapter)

Ports:

• Front:

• 2 × USB 2.0
• 2 × USB 3.0
• Headphone jack
• Microphone jack

• Rear:

• 4 × USB 2.0
• 2 × USB 3.0
• 1 × RJ-45 LAN
• 1 × Serial port
• 1 × Audio line-in / line-out
• GPU outputs (Quadro K5000): 2 × DisplayPort, 1 × DVI-I, 1 × DVI-D

Expansion Slots:

• 2 × PCIe x16 (Gen 3)

• 1 × PCIe x8 (Gen 2)

• 1 × PCIe x4 (Gen 2)

• 1 × PCI legacy

Drive Bays:

• 2 × 3.5″ internal (supports 2.5″ adapters)

• 2 × 5.25″ external bays

Power Supply: 685 W (80 PLUS Gold efficiency)

Dimensions: 471 × 173 × 414 mm

Weight: Approx. 13 kg

Performance Summary:

The Dell Precision T3610 is a powerful single-CPU workstation built for professional design and rendering workloads. The Xeon E5-1650 v2 provides excellent multi-threaded performance, while the Quadro K5000 GPU ensures smooth graphics acceleration for demanding 3D, CAD, and visualization applications.

Ideal Use Cases:

• 3D modeling and rendering (Autodesk Maya, 3ds Max, Blender)

• CAD/CAM design (SolidWorks, AutoCAD, Revit, CATIA)

• Graphic design and video editing

• Architecture and engineering visualization

• Scientific and simulation workloads requiring ECC memory stability
