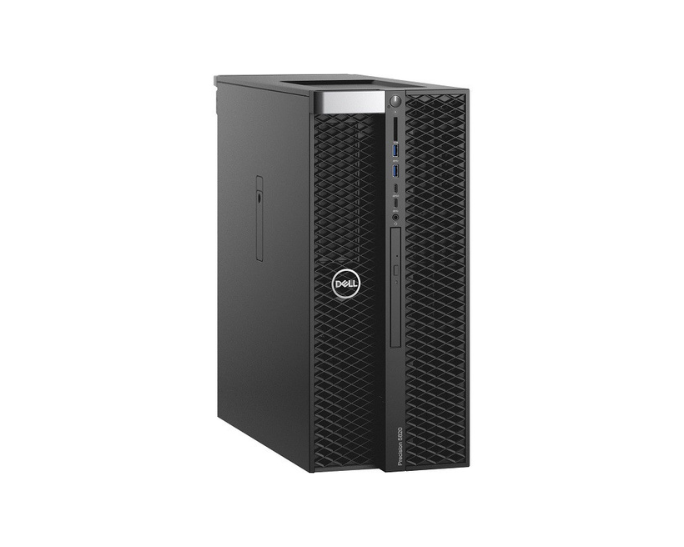

DELL PRECISION 5820 – RAM 32GB – PROC XEON W-2123 – SSD 512GB – QUADRO P2000

🖥️ DELL PRECISION 5820 – Workstation Specifications

• Form Factor: Tower Workstation
• Processor: Intel Xeon W-2123
  • 4 Cores / 8 Threads
  • Base Frequency: 3.6 GHz
  • Max Turbo Frequency: 3.9 GHz
  • Cache: 8.25MB SmartCache
  • TDP: 120W
• RAM: 32GB DDR4 ECC Registered (RDIMM)
  • Expandable up to 256GB or more
• Storage: 512GB SSD (M.2 NVMe or SATA SSD depending on configuration)
• Graphics: NVIDIA Quadro P2000 – 5GB GDDR5 (Professional GPU)

🔌 Connectivity & Ports

• Front Ports:
  • 2 × USB 3.1 Gen 1
  • 2 × USB 2.0
  • Headphone jack
  • Optional: SD card reader
• Rear Ports:
  • 4 × USB 3.1 Gen 1
  • 2 × USB 2.0
  • 2 × PS/2
  • 2 × DisplayPorts (from GPU)
  • Serial, Line-in/out, Mic
  • RJ-45 Gigabit Ethernet

🔧 Expansion & Features

• Expansion Slots:
  • 1 × PCIe x16 (for GPU)
  • Additional PCIe slots for RAID, capture cards, etc.
• Drive Bays:
  • Multiple 3.5″/2.5″ bays for HDD/SSD expansion
• Power Supply: 425W–950W (depending on configuration)
• Cooling: High-performance thermal design for workstation use
• Operating System: Typically Windows 10/11 Pro or Linux (configurable)

✅ Highlights

• Built for professional workloads like CAD, 3D rendering, and video editing
• Powerful Xeon W processor with ECC memory support
• Quadro P2000 GPU optimized for stability in pro applications
• Excellent upgrade potential and durability
• ISV certified for many professional software platforms
