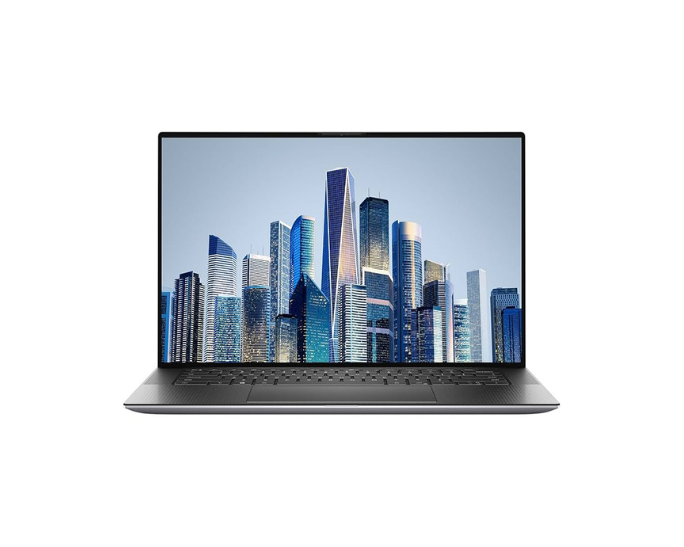

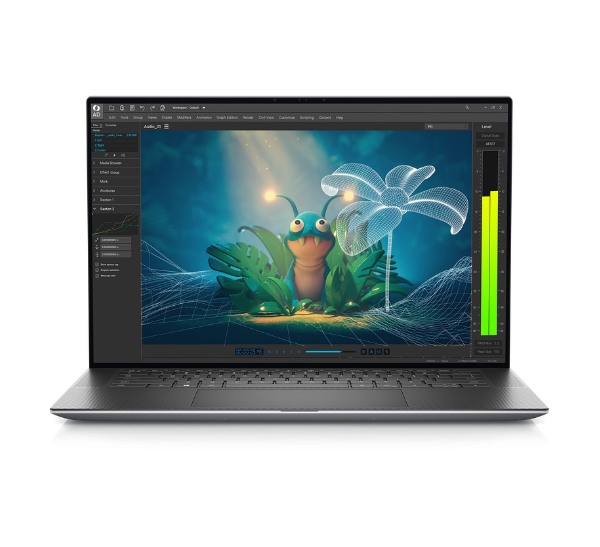

DELL PRECISION 5560 – RAM 32GB – PROC I7 11850H – SSD 512GB – GRAF T1200 – DISP 15.6″ FHD

Dell Precision 5560 – Full Specifications

🧠 Processor

• Intel Core i7-11850H (11th Gen)
  • 8 Cores / 16 Threads
  • Base Clock: 2.5 GHz
  • Max Turbo Boost: up to 4.8 GHz
  • 24MB L3 Cache
  • vPro support
  • 10nm SuperFin architecture

🧬 Memory (RAM)

• 32GB DDR4-3200 MHz
  • Dual-channel
  • 2 × SODIMM slots (upgradeable up to 64GB)

💾 Storage

• 512GB PCIe NVMe M.2 SSD
  • High-speed Gen3 or Gen4 (depending on configuration)
  • Supports multiple M.2 storage devices

🎮 Graphics

• NVIDIA RTX A2000 or T1200 (depending on variant)
  In your case:
  • NVIDIA T1200 (Laptop GPU)
  • 4GB GDDR6
  • ISV-certified for CAD, 3D modeling, content creation
  • Also includes Intel UHD Graphics for 11th Gen CPUs (for power saving / switchable)

🖥️ Display

• 15.6″ Full HD+ (1920×1200) IPS
  • 16:10 aspect ratio
  • Anti-glare, non-touch
  • Brightness: ~500 nits
  • Wide color gamut (100% sRGB)
  • Ultra-thin InfinityEdge bezels

🔋 Battery

• 6-cell 86Wh Lithium-ion battery
  • Long runtime with ExpressCharge
  • Integrated with power-efficient display and components

📏 Chassis & Dimensions

• Build: Premium aluminum + carbon fiber
• Weight: ~1.84 kg
• Dimensions: 344.4 x 230.3 x 7.7–11.6 mm
• Keyboard: Backlit, spill-resistant
• Touchpad: Large glass precision touchpad

🔌 Ports

• 2 × Thunderbolt 4 (USB-C)
• 1 × USB-C 3.2 Gen 2
• 1 × 3.5mm headphone/mic combo
• 1 × SD card reader (full size)
• Optional: USB-C to HDMI/USB-A/Ethernet dongle included

📶 Connectivity

• Wi-Fi 6E (Intel AX210)
• Bluetooth 5.2

🔐 Security

• TPM 2.0
• Optional IR camera for Windows Hello
• Fingerprint reader (integrated into power button)
• Smart Card reader (optional)

🔊 Audio

• Stereo speakers with Waves MaxxAudio Pro
• Dual-array mics
• High-quality DAC for professional audio

🖥️ Operating System

• Windows 10 Pro or Windows 11 Pro
• Linux support (Ubuntu certified)
• ISV-certified for professional apps (AutoCAD, Revit, SolidWorks, Adobe, etc.)
