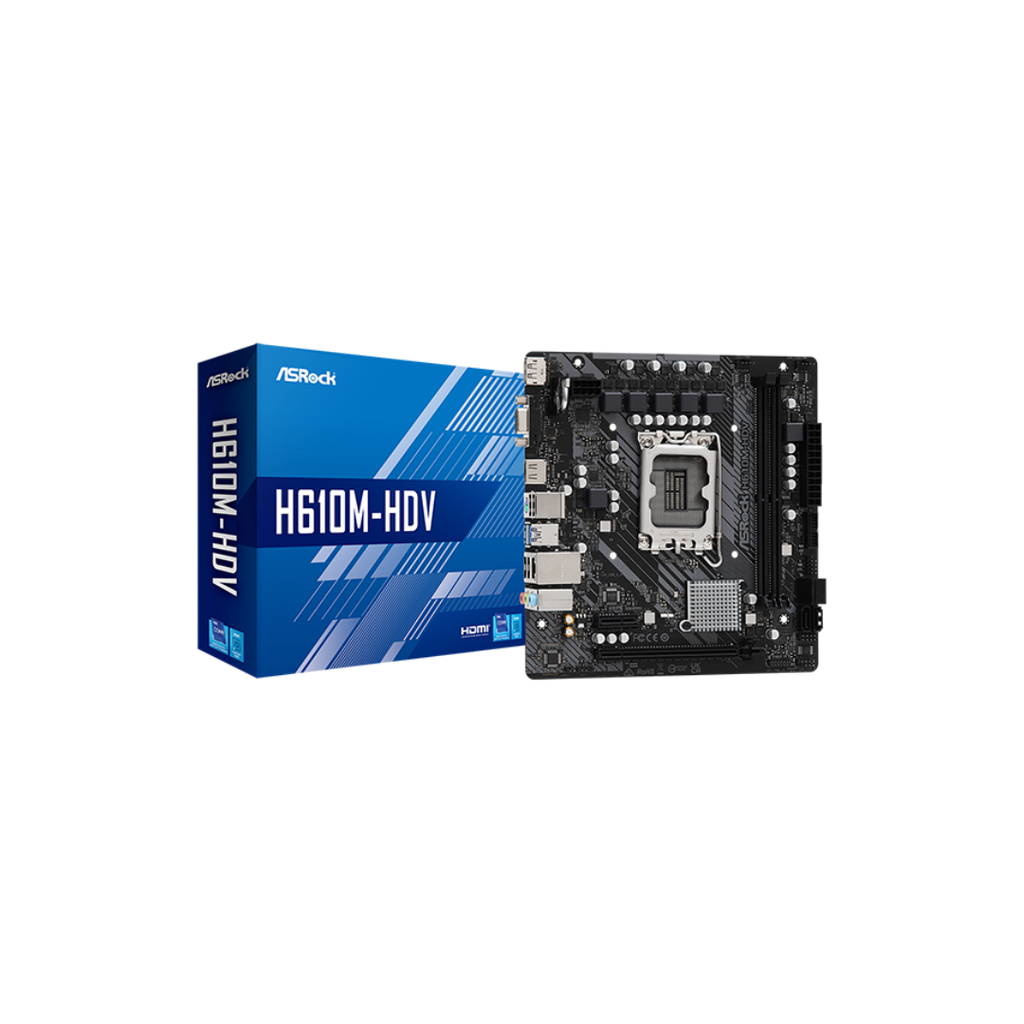

ASROCK MOTHERBOARD H610M

ASRock H610M Motherboard – Specifications and Features

Form Factor

• Micro ATX

Chipset

• Intel H610

CPU Support

• Supports 12th and 13th Gen Intel Core processors (LGA1700 socket)
• Supports Pentium Gold and Celeron processors

Memory

• 2 x DDR4 DIMM slots
• Supports up to 64GB memory
• Dual channel DDR4 up to 3200MHz (depends on CPU)
• Non-ECC, un-buffered memory

Graphics

• Integrated GPU support depends on CPU
• 1 x HDMI port (4K @ 60Hz)
• 1 x VGA port
• 1 x DVI-D port (on select models)

Expansion Slots

• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 3.0 x1 slot

Storage

• 1 x M.2 slot (PCIe Gen3 x4/SATA3)
• 4 x SATA3 6.0 Gb/s ports

Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

• Realtek Gigabit LAN

USB Ports

• Rear I/O:
  • 2 x USB 3.2 Gen1 Type-A
  • 4 x USB 2.0
• Internal:
  • 2 x USB 3.2 Gen1 (for front panel)
  • 4 x USB 2.0 (for front panel)

Internal I/O

• 1 x RGB LED header
• 1 x 24-pin ATX power connector
• 1 x 8-pin 12V power connector
• Multiple fan headers

BIOS

• UEFI AMI BIOS
• Full HD UEFI interface
• Support for “Instant Flash” and “Internet Flash”

Other Features

• Solid capacitor design
• Surge protection
• ASRock full spike protection
